Specification basis
Standard items are linked to complete part numbers and required configurations. Custom parts are linked to drawing numbers, revisions and technical requirements. Critical requirements are associated with the relevant order lines.
Within ZOFANG’s integrated transmission-component supply, standard parts, customer-specified brands and custom parts keep their distinct acceptance criteria. Specifications, drawing revisions, inspection scope, accompanying documents and issue handling are linked to the project item list.


Standard items are linked to complete part numbers and required configurations. Custom parts are linked to drawing numbers, revisions and technical requirements. Critical requirements are associated with the relevant order lines.
Inspection points, sampling or full-inspection scope, acceptance criteria and record formats are agreed for each project, reflecting the requirements of the individual products.
Material, treatment and inspection records are defined and checked for availability as part of the order. Available documentation varies by product, brand and supply source.
These are common review points. The actual inspection scope follows the agreed drawings, specifications and acceptance plan. Requirements for specialized verification are resolved before ordering.
| Component type | Typical review points |
|---|---|

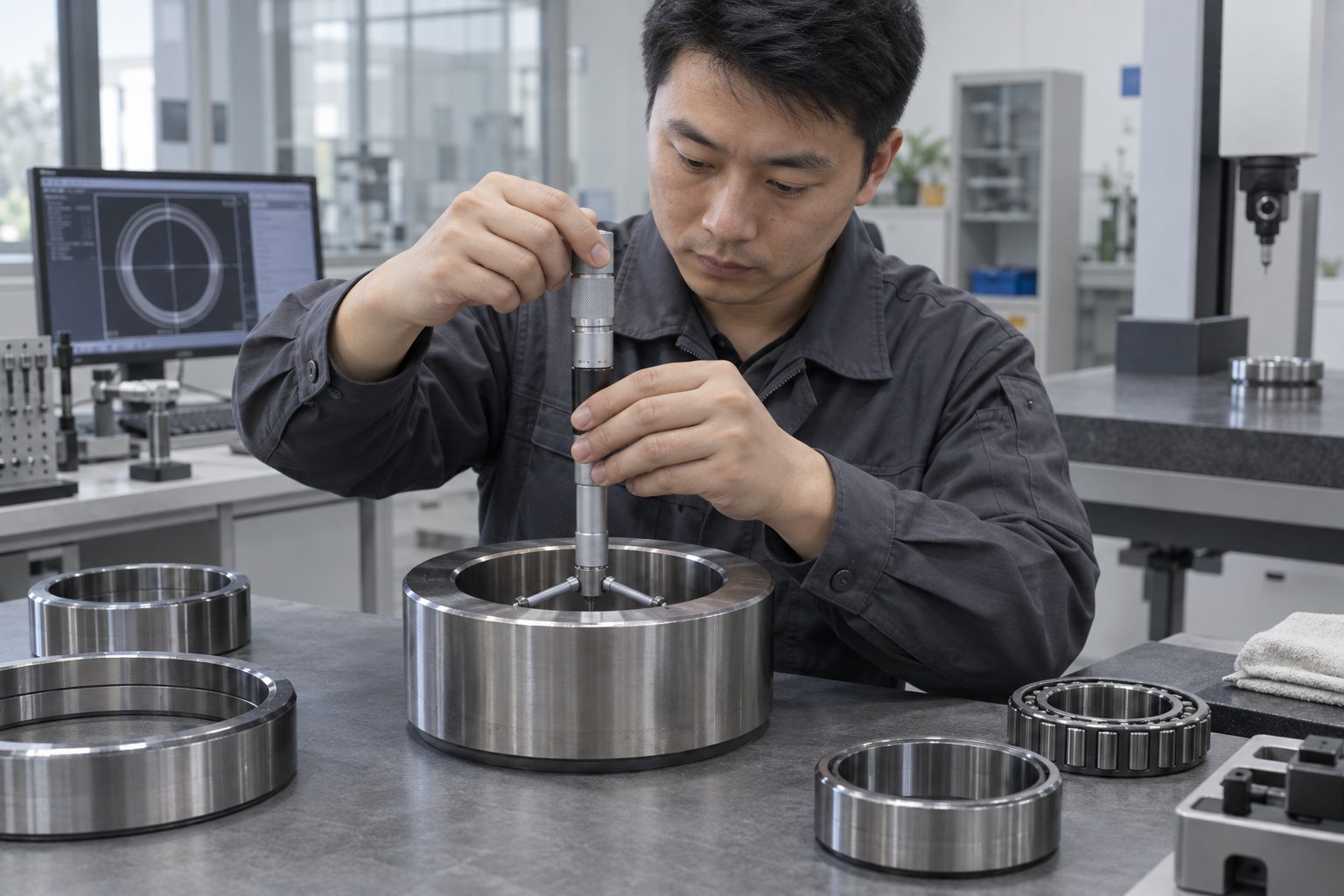

| Bearings | Designation and suffixes, envelope dimensions, seal type, clearance marking, appearance and packaging identification |
| Linear guides and blocks | Series compatibility, rail length, hole pattern, block form, assembly height and surface protection |
| Ball screws | Diameter and lead, overall length, end dimensions, nut interface and drawing-specific requirements |
| Timing pulleys and belts | Tooth profile and pitch, belt width, pulley bores, keyways, flanges and surface condition |

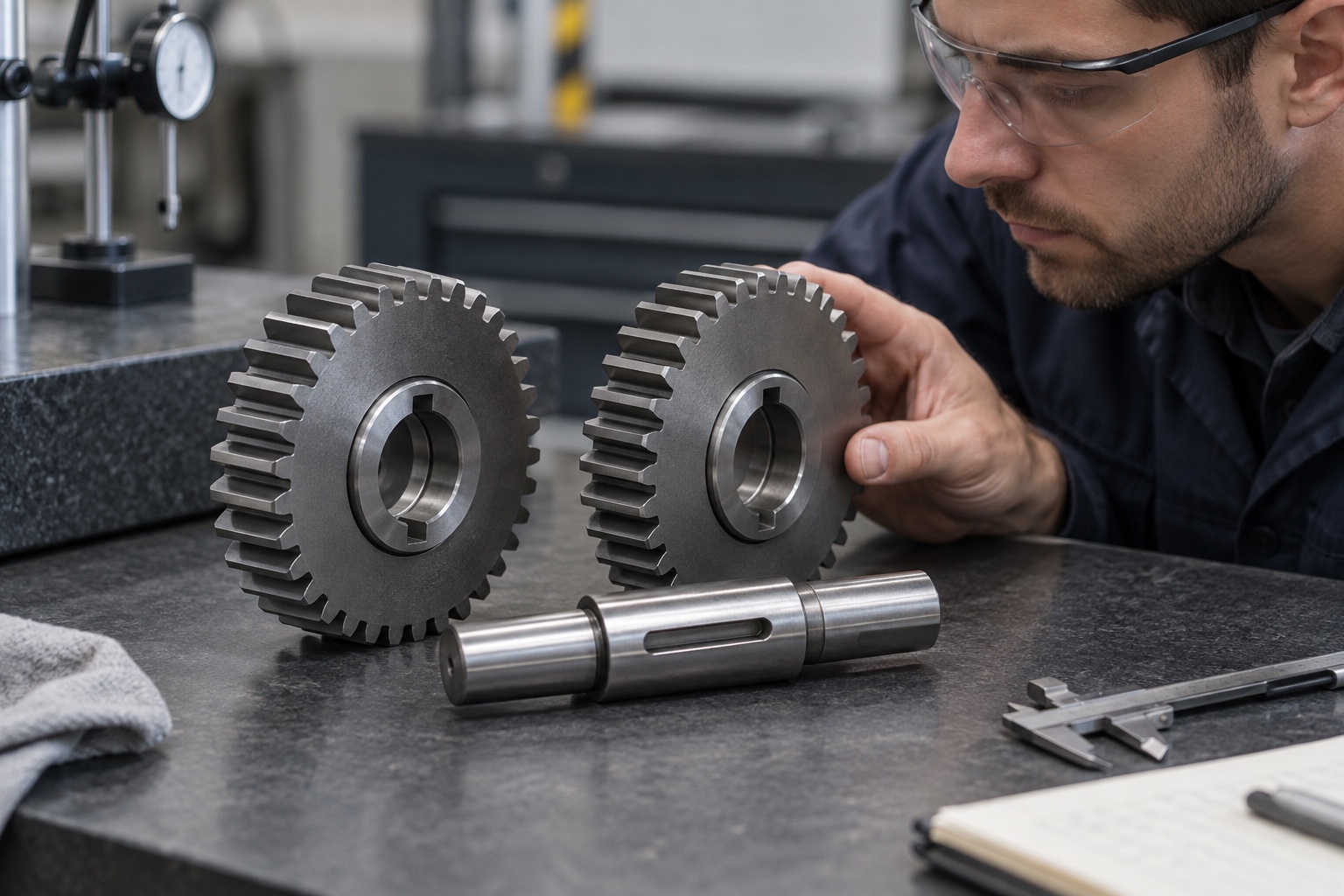

| Racks, gears and couplings | Tooth geometry, mating relationships, bores, connection types and specified geometric requirements |
| Locating and fastening parts | Reference dimensions, fit tolerances, threads, material identification and surface-treatment requirements |
| Servo motors and gearboxes | Complete model, configuration marking, flange and shaft interfaces, appearance and agreed documents |

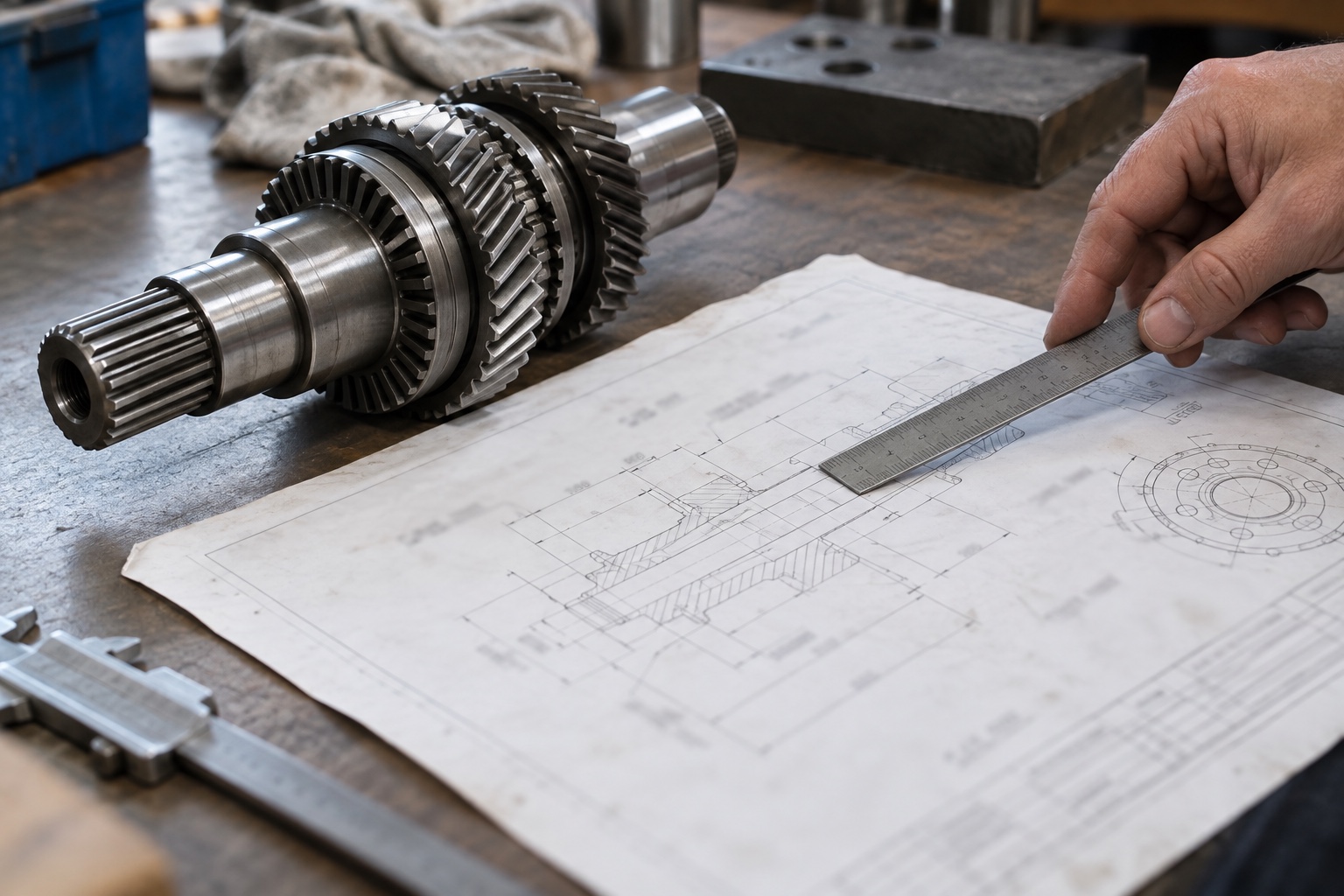

Assembly references, mating dimensions, threads and geometric requirements are reviewed in relation to the application. Ambiguous or conflicting drawing requirements are resolved before work begins.
Material grades, heat treatment and surface treatment follow the agreed requirements. Supporting records or specialized verification are defined during quotation and order review.
Where sample approval is part of the project, sample validation is distinguished from batch acceptance. Subsequent supply follows the confirmed drawing and order requirements.
Dimensional or inspection records agreed for the project are linked to the drawing, revision and delivery batch. A drawing change triggers review of the affected requirements.

Brand, model suffixes and grade or configuration markings are matched to the order. Labels, packaging and accompanying documents are reviewed to the agreed project requirements.
A change of brand, model or configuration is identified and approved before proceeding. Similar appearance or part-number wording does not establish technical compatibility.
Supply records and accompanying documents follow the particular source and project agreement. Additional origin, material or inspection records are limited to the scope confirmed as available before ordering.

| Delivery stage | Checks and records |
|---|---|
| Specification review | Correspondence between delivered items and the ordered models or drawing revisions |
| Acceptance records | Agreed inspection points, results and records of any issue handling |
| Quantities and identification | Links between quantities, project item references and packaging labels |
| Protection and packing | Surface protection, vulnerable features, separation of related parts and agreed transport packaging |
| Accompanying documents | Packing information and the inspection or material documents agreed and confirmed as available |

The order, item, quantity and batch establish the reference. Photographs, measurements and operating information help distinguish the nature of the issue.
Rechecking, rework, replacement supply or returns are considered as appropriate to the circumstances. Scope, responsibilities and timing are agreed between the parties.
Confirmed issues and their resolution inform subsequent supply requirements. Drawings, acceptance points or packaging requirements are updated where needed.
Repeat purchases refer to the agreed technical basis, with a check for changes to revisions, brand configurations and acceptance requirements before the next order proceeds.
Quality requirements follow the project list, from a single branded component to a coordinated package of standard and custom parts.
