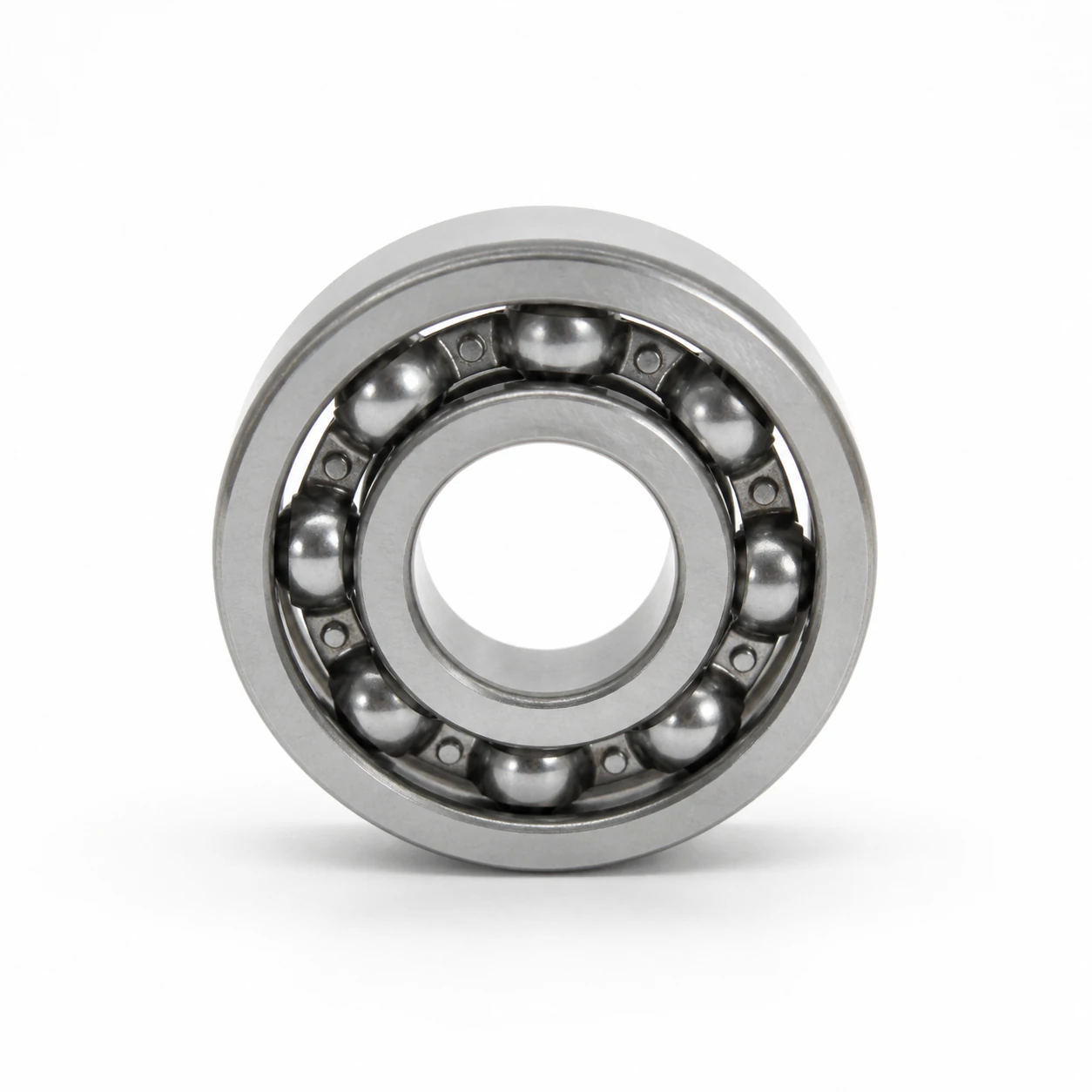

REPRESENTATIVE PRODUCT IMAGE产品示意图MODEL型号
6201
Open construction for general motors and light transmission开式结构，适用于通用电机与轻型传动| Boundary dimensions安装尺寸 | Metric series公制系列 |
|---|---|
| Bore diameter d内径 d | 12 mm |
| Outside diameter D外径 D | 32 mm |
| Width B宽度 B | 10 mm |
| Seal options密封选项 | Open, shielded or sealed; confirm suffix开式、防尘盖或密封；需确认后缀 |
| Clearance options游隙选项 | CN, C3 or application-specificCN、C3 或按工况选择 |
| Material options材料选项 | Confirm against the required environment根据使用环境确认 |
| Selection notes选型说明 | Load and speed data require the complete suffix载荷与转速数据需按完整后缀确认 |
Seal, cage, clearance, tolerance, lubricant and internal design can change load rating and permissible speed. Confirm the complete designation before ordering.密封、保持架、游隙、公差、润滑及内部设计会影响额定载荷和允许转速，订购前需确认完整型号。
COMPARE & SELECT对比与选型
Explore standard bearings series查看传统轴承系列
Open a series to compare construction, dimensions and application requirements before requesting a quotation.进入具体系列，对比结构、尺寸与应用要求，再准备询价资料。
Published bearing model dimensions已发布的轴承型号尺寸
These links open the individual model pages. Dimensions are in millimetres; equal dimensions alone do not establish interchangeability.以下链接可直接进入型号详情页。尺寸单位为毫米；仅尺寸相同并不能确认可直接互换。
| Model型号 | d (mm) | D (mm) | B (mm) |
|---|---|---|---|
| 6200 | 10 | 30 | 9 |
| 6201 | 12 | 32 | 10 |
| 6202-ZZ | 15 | 35 | 11 |
| 6203 | 17 | 40 | 12 |
| 6204-2RS | 20 | 47 | 14 |
| 6205 | 25 | 52 | 15 |
| 6206-ZZ | 30 | 62 | 16 |
| 6207-2RS | 35 | 72 | 17 |
| 6208 | 40 | 80 | 18 |
| 6209-ZZ | 45 | 85 | 19 |
Before ordering 62016201 订货前核对
Check the full marking on the existing bearing and compare its 12 mm bore, 32 mm outside diameter and 10 mm width with the shaft and housing requirements. Also confirm the closure arrangement, internal clearance, accuracy class, lubricant and operating temperature. These requirements are not determined by boundary dimensions alone.核对原轴承完整标记，并将 12 毫米内径、32 毫米外径、10 毫米宽度与轴及座孔要求逐项比较。同时确认密封或防尘结构、内部游隙、精度等级、润滑剂和工作温度；这些要求不能仅由外形尺寸判断。
Send the model marking, installation drawing or clear photographs, quantity and working conditions with your enquiry. Confirm the manufacturer-specific suffix and replacement requirements before approving a substitute.询价时提供型号标记、安装图纸或清晰照片、数量和工况。接受替代品前，应确认制造商后缀含义及替换要求。
