Rail layout
Rail spacing and block spacing influence moment loading. End-hole distances and joint positions belong to the installed layout.
Integrated supplier of industrial transmission components

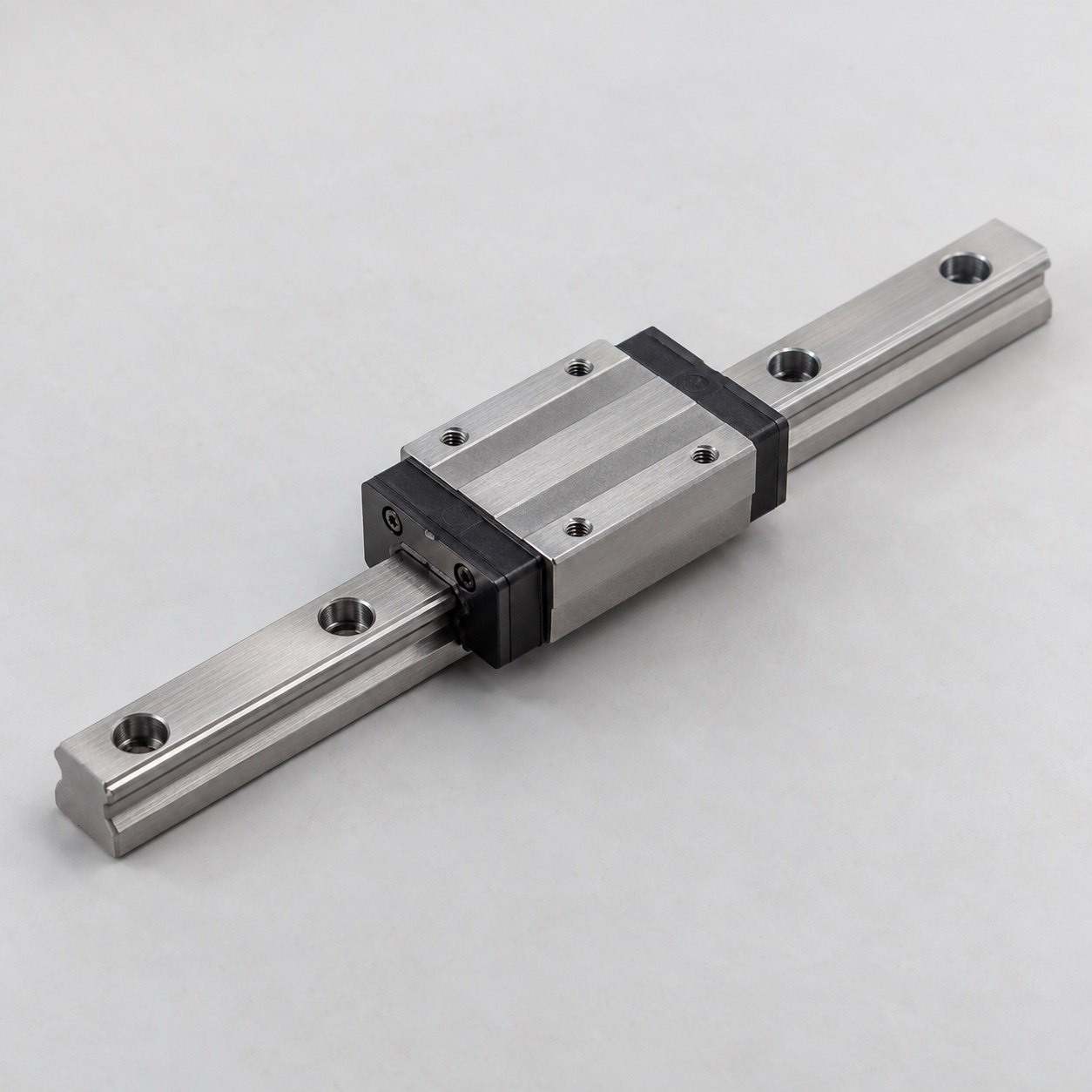

Linear Guides
Specify rails and matching blocks together, with the details needed to confirm the assembly.
Types within this family
Clarify the requirement within this product family.
These are specification options within the same family. Actual availability and suitability are confirmed against your request.

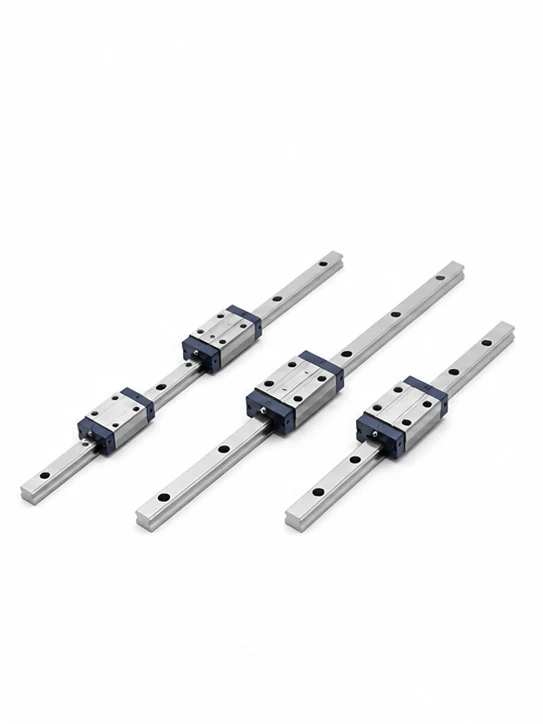

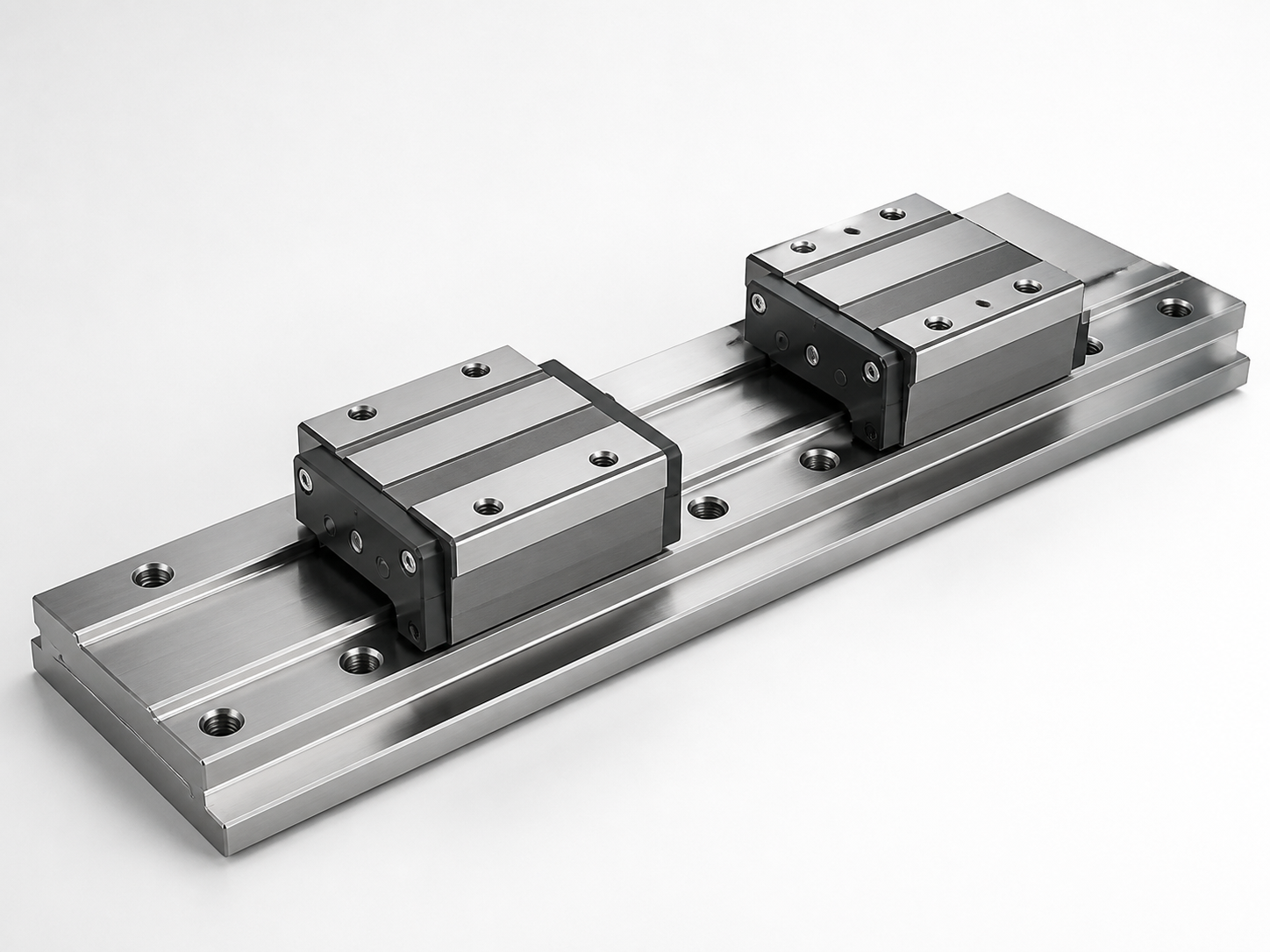

Profile Rail GuideRail and block model · Rail lengthMiniature GuideComplete series reference · Rail length and end distancesWide Rail GuideRail width or series · Carriage referenceRoller GuidewaySpecified series · Accuracy designationReplacement Guide BlockExisting rail reference · Existing block referenceCut-to-length RailRail series · Finished length

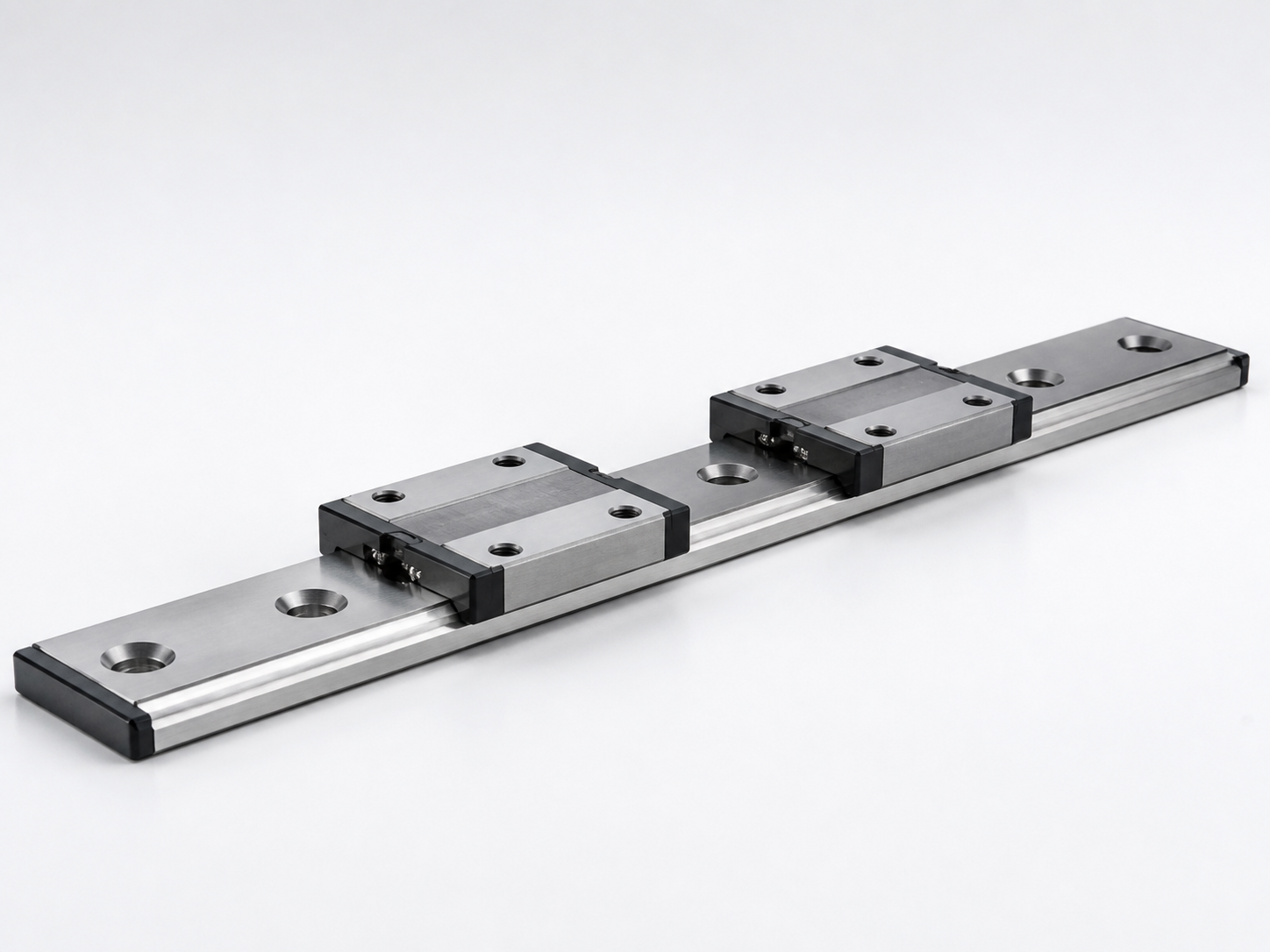

Low-profile Linear Guides
- Rail and carriage series
- Installed assembly height
- Rail length and end distances
- Carriage mounting pattern
A lower assembly height does not guarantee the same mounting pattern as another guide series. Include the installation drawing.
Crossed Roller Guides
- Exact guide reference
- Rail length and set quantity
- Cage or complete-set requirement
- Mounting and travel drawing
A replacement cage and a complete guide set are different supply requirements. Specify the required assembly level.

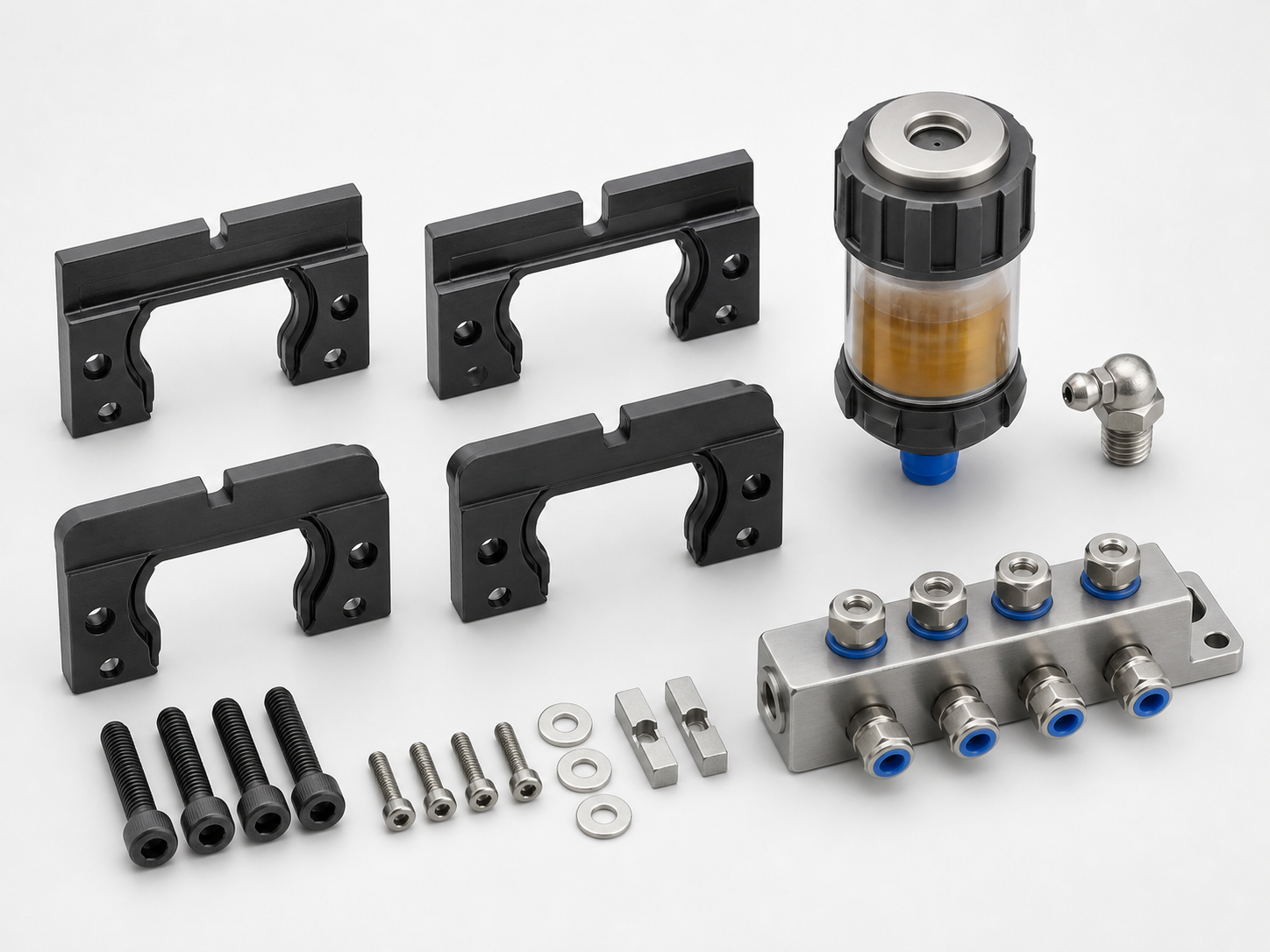

Linear Guide Accessories
- Guide series and size
- Accessory reference or drawing
- Required mounting position
- Quantity per rail or carriage
A rail-size number alone does not identify a compatible cap, seal or lubrication fitting. Include the accessory reference.
Supply routes
Distributed BrandsSupply by specified model, China-made production or drawing.
For brand distribution, China-made components and drawing-based parts, origin, specifications and supply terms are confirmed by item.

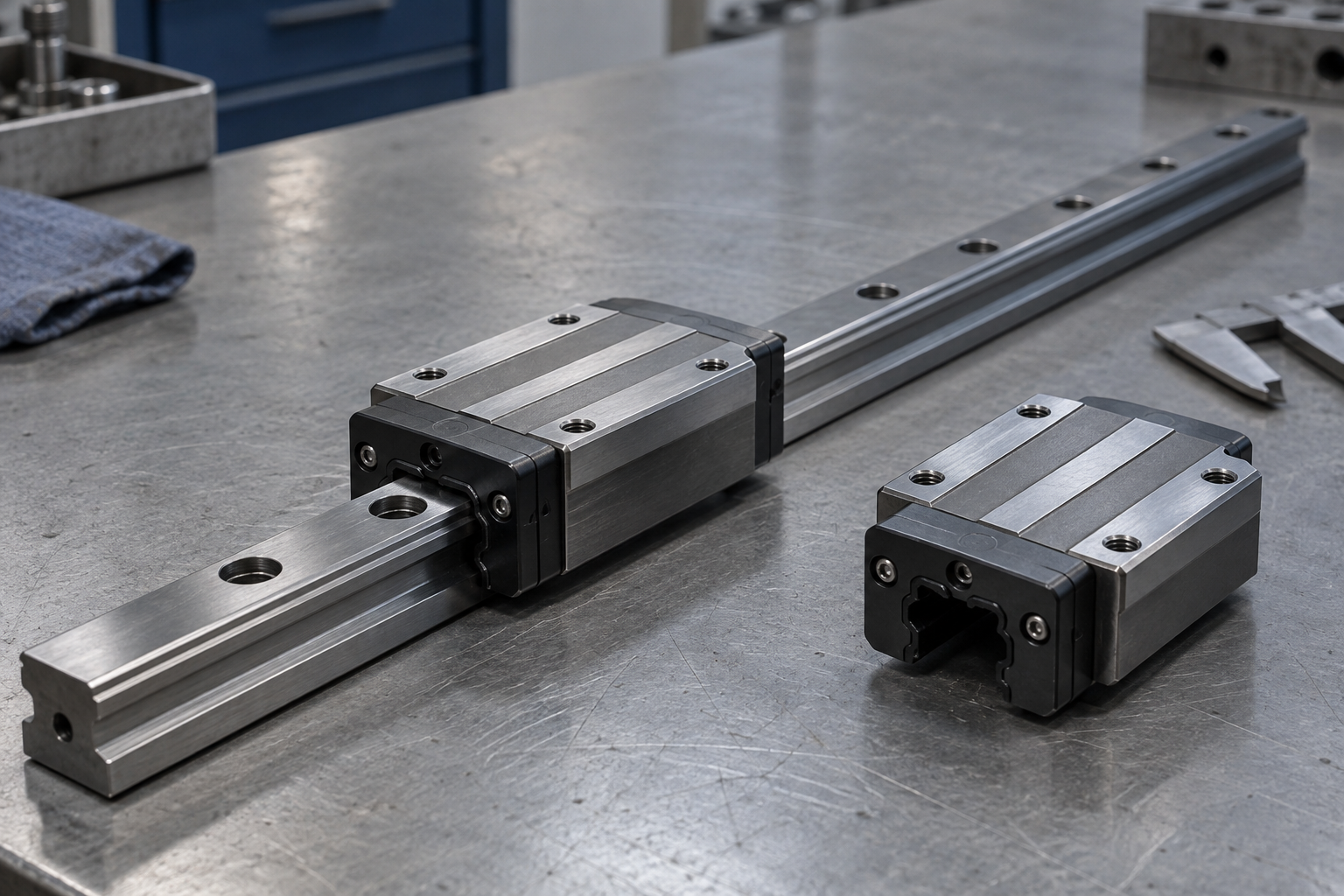

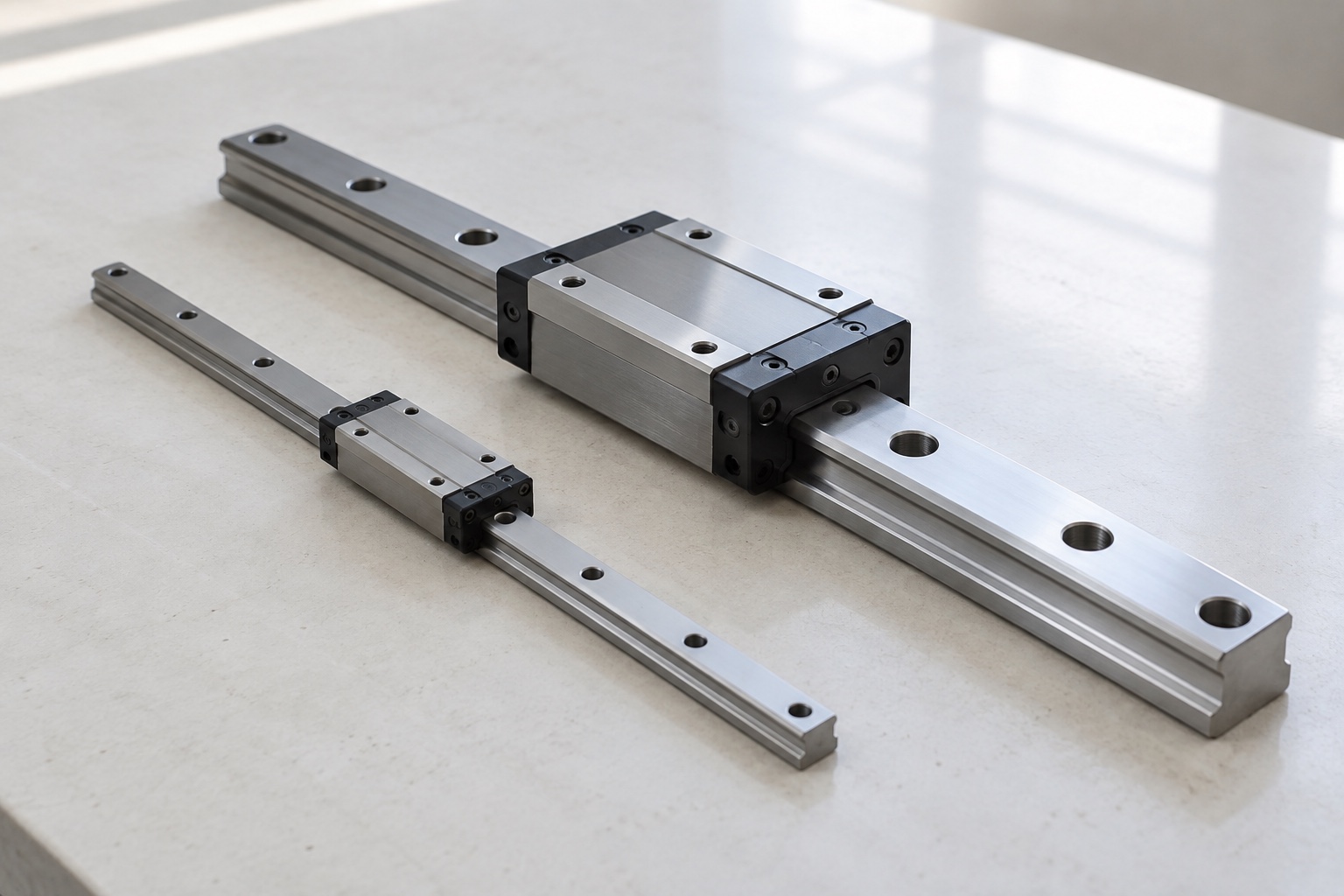

PRODUCT FORMS
A clear view of the available forms.
Rails, blocks and mounting surfaces work as a system. Form factor, preload and accuracy class are considered together with the driven axis.
| Product form | Construction | Selection focus | Connected components |
|---|---|---|---|
| Profile ball guide | Recirculating balls in a profiled rail and block | Block arrangement, preload and load directions | Ball screw, coupling and axis mounting parts |

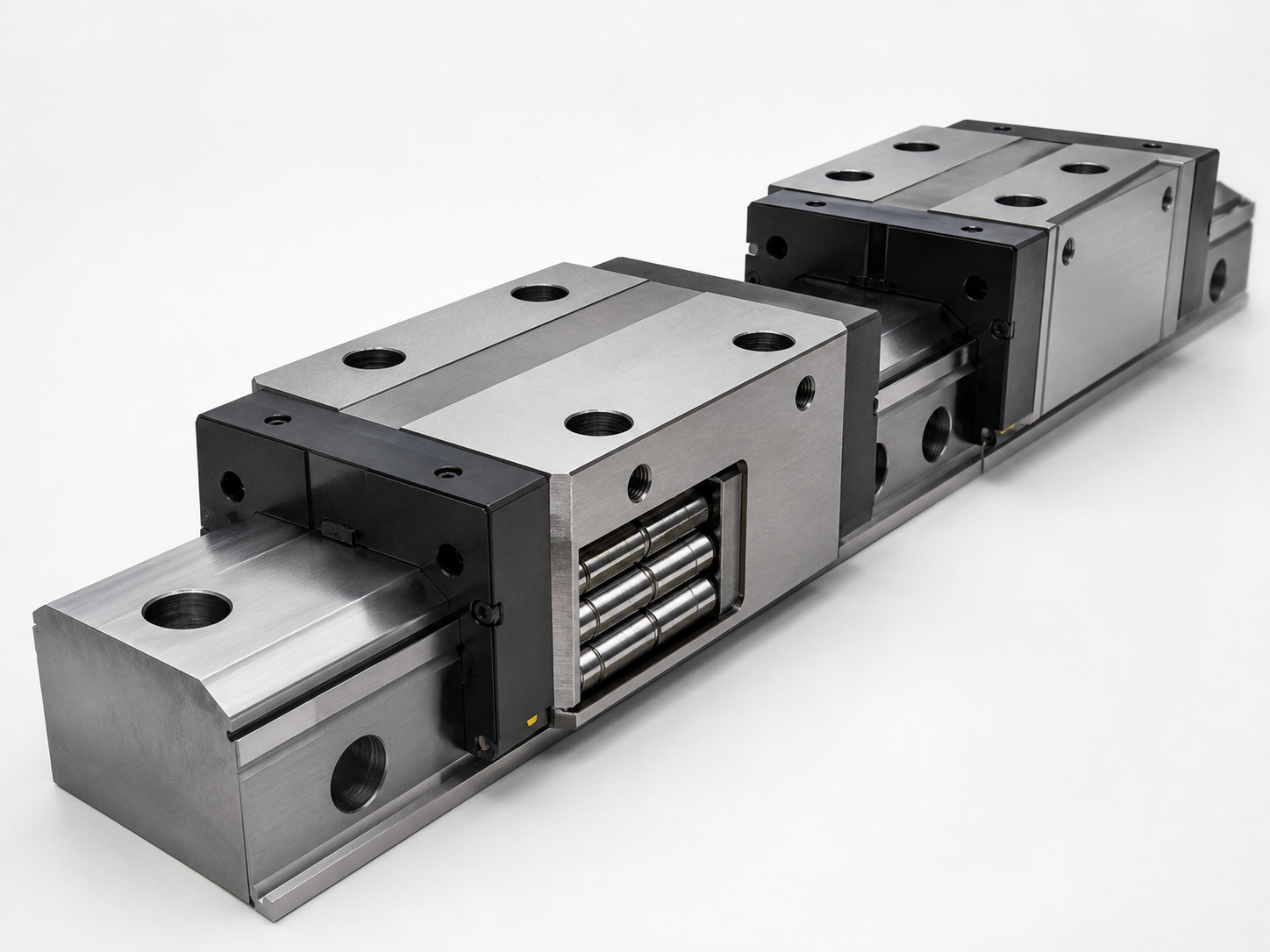

| Roller guide | Rollers used as the rolling elements | Rigidity requirements and mounting-surface quality | Drive components selected for the same axis duty |

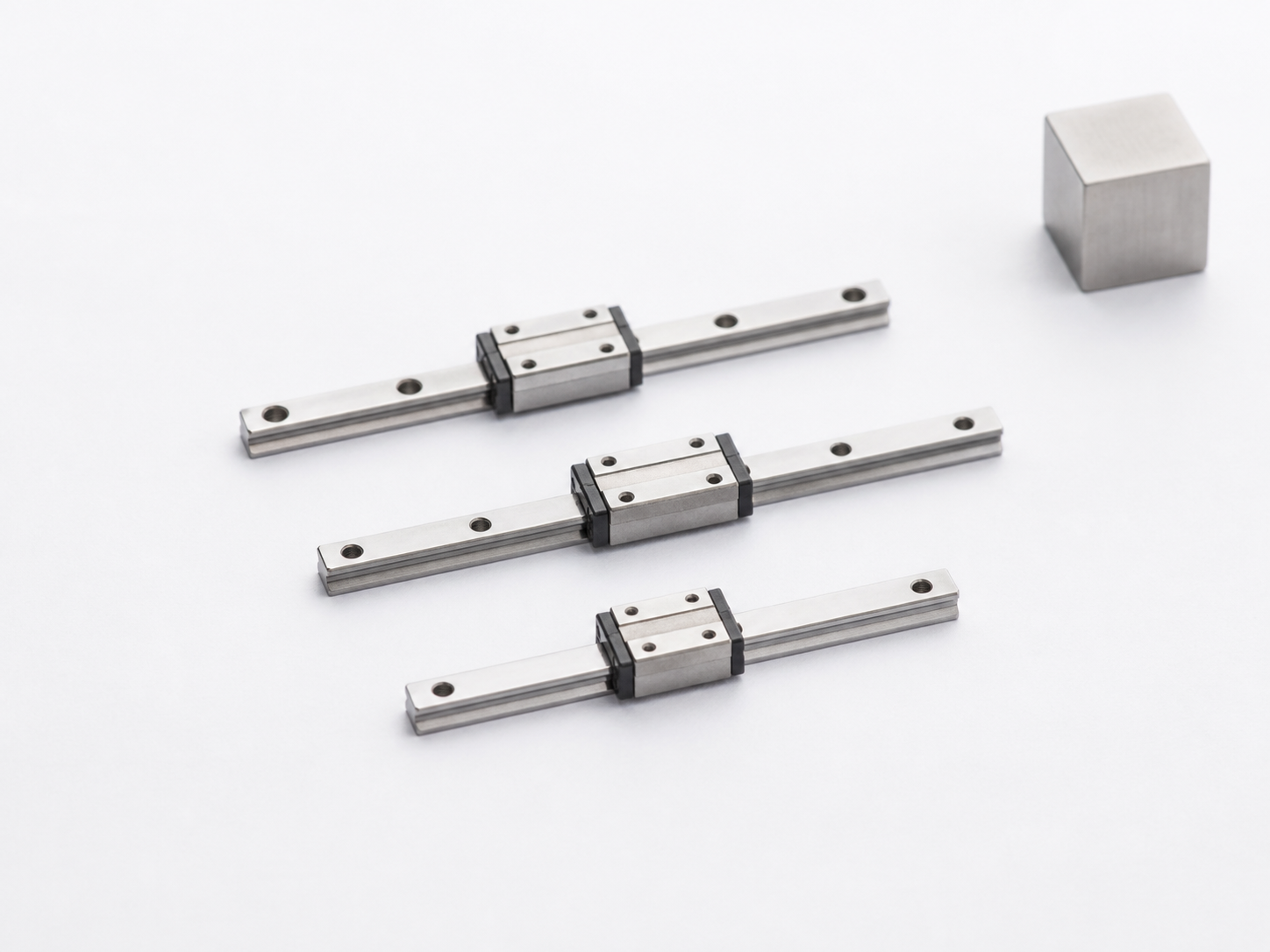

| Miniature guide | Compact rail and carriage geometry | Available envelope, stroke and contamination exposure | Compact screws, couplings and locating parts |
| Flange or square block | Different carriage width and fixing arrangements | Mounting access and carriage-to-table interface | Matching rail, fasteners and table reference surfaces |
INTERFACE & SELECTION
The details that connect the assembly.
Rail and block identity
Brand, series and interchangeability rules define the valid combination. Similar dimensions alone do not confirm a compatible set.
Lubrication and protection
Grease-port direction, wipers and access for service are considered before adjacent components restrict access.
INTEGRATED SUPPLY
Connected parts in one component list.
Linear feed
Guide travel and block layout are coordinated with screw travel, nut location and support positions.
Ball ScrewsRack-driven axes
Rack installation and pinion position share the machine reference system with the guides.
Racks & GearsMounting references
Locating pins and suitable fasteners maintain the intended relationship between rail, bed and carriage.
Precision Locating FastenersRFQ information
A complete model is enough to begin. Partial information is welcome too.
A model, photo, drawing or BOM can start the discussion; brand, quantity and critical interfaces can be clarified by item.
