Ball Screws

Coordinate screw, nut and associated components around your machine requirements.

Ball Screws
Types within this family

Clarify the requirement within this product family.

These are specification options within the same family. Actual availability and suitability are confirmed against your request.

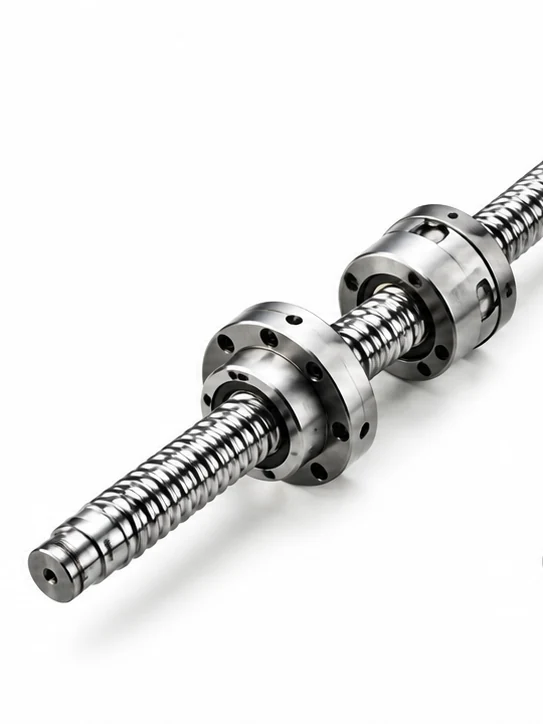

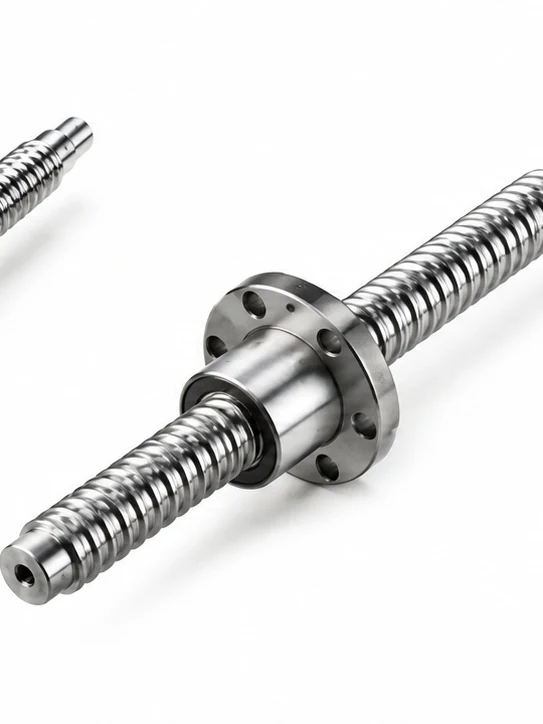

Rolled Ball ScrewScrew diameter and lead · Overall and threaded lengthsGround Ball ScrewSpecified model or drawing · Lead and travelMiniature Ball ScrewDiameter and lead · Nut envelopeBall Screw NutScrew model · Nut model

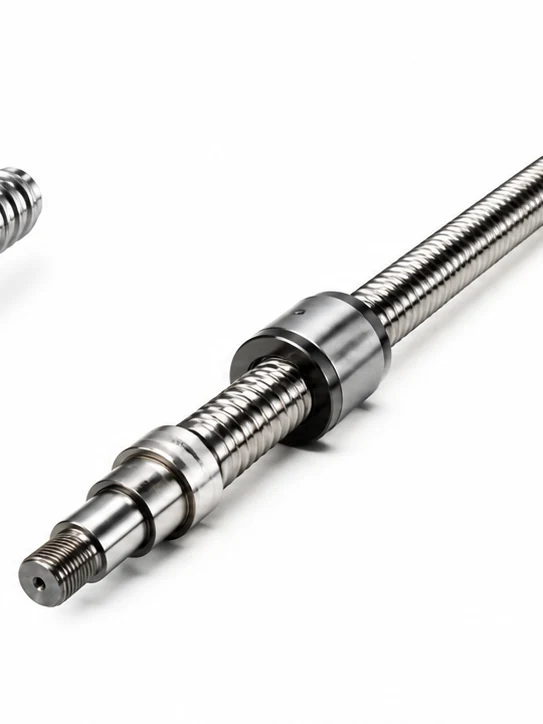

End-machined Ball Screw
  • Base screw reference
  • Both shaft-end dimensions
  • Threads and retention features
  • Critical tolerances

A sketch of one end leaves the opposite interface unresolved. Identify both ends and their datum references.

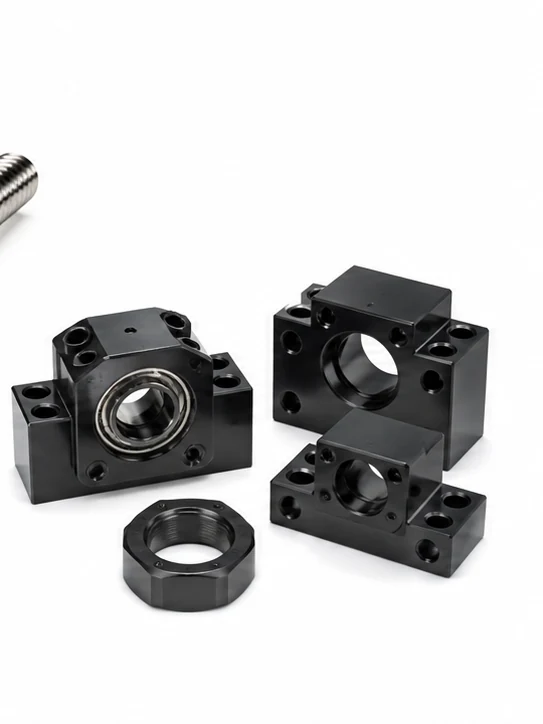

Ball Screw Support UnitSupport-unit model · Fixed or supporting position

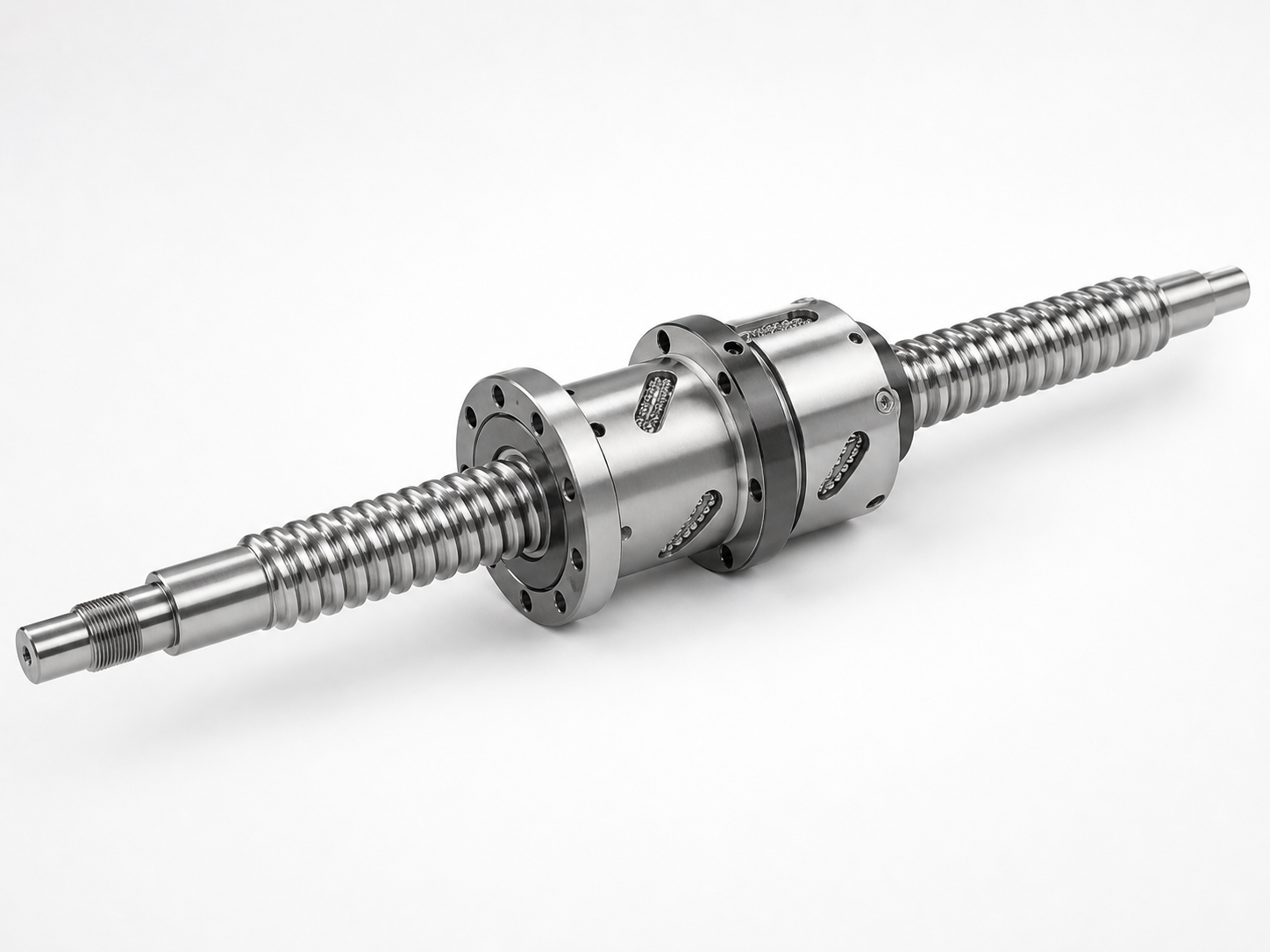

Preloaded Ball Screws
  • Screw and nut model
  • Specified preload designation
  • Accuracy requirement
  • End and nut mounting drawings

Do not infer preload from a nut shape or general precision description. Retain the specified designation or acceptance requirement.

High-lead Ball Screws
  • Screw diameter and lead
  • Travel and overall length
  • Nut envelope and mounting
  • Application and accuracy requirements

A high-lead description is relative and cannot replace a numerical lead or full model reference.

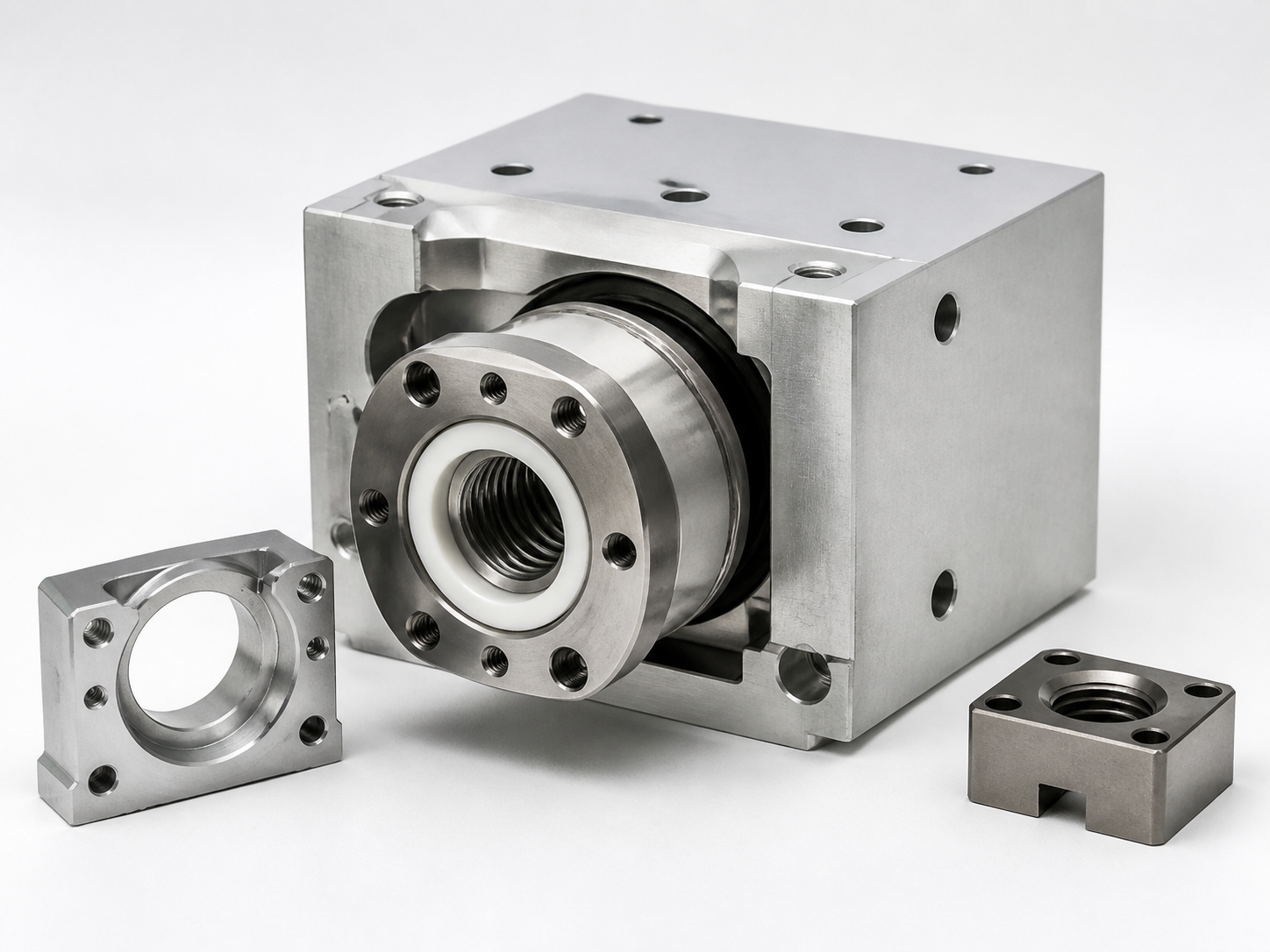

Ball Nut Housings
  • Nut model and flange dimensions
  • Housing mounting pattern
  • Center height and envelope
  • Material and finish requirement

A screw diameter alone does not identify a nut housing. Include the nut interface and machine-side mounting details.

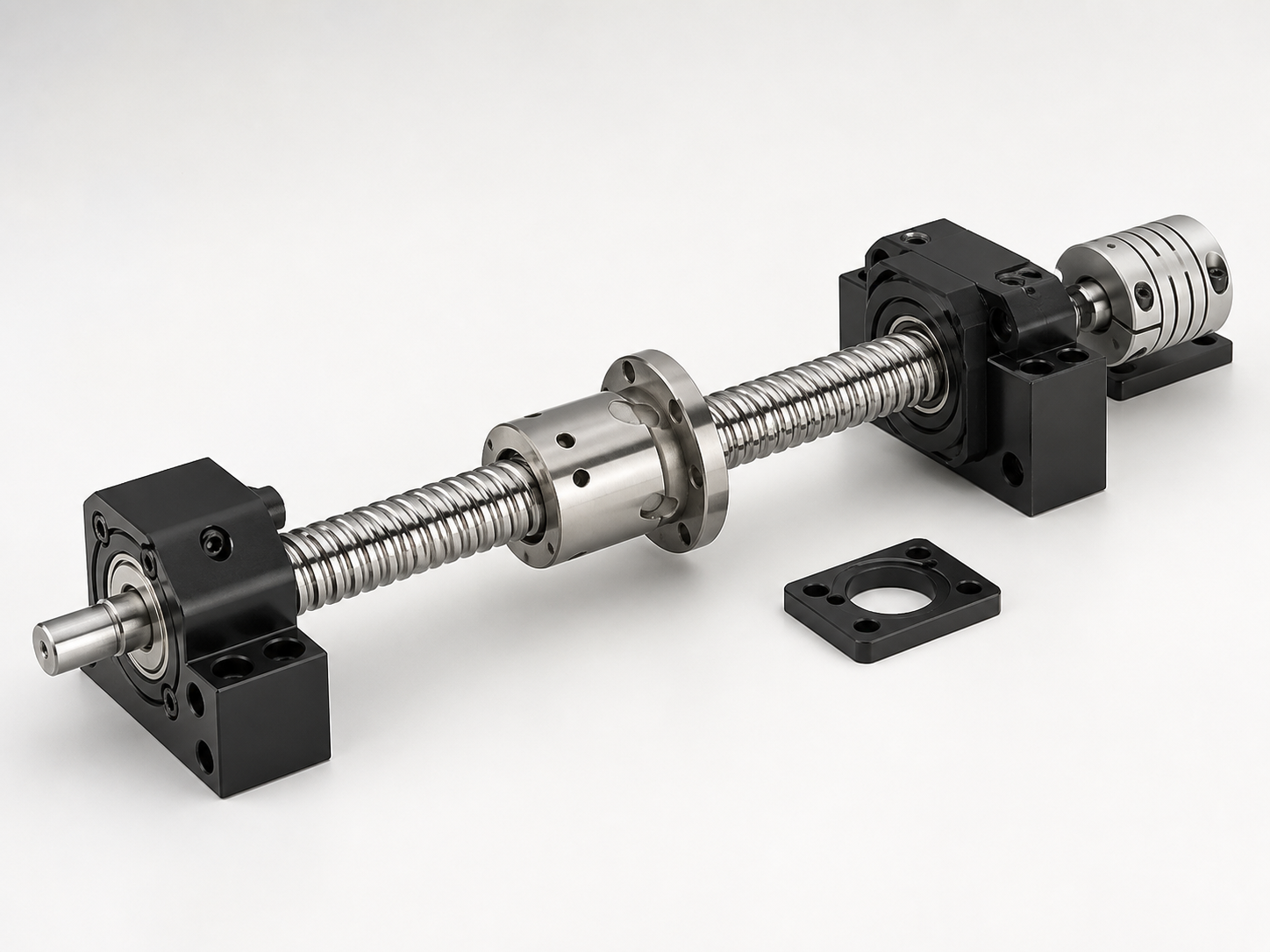

Replacement Ball Screw Assemblies
  • Original full reference
  • Both shaft-end drawings
  • Nut and housing interface
  • Travel and acceptance requirements

Photos or overall length alone leave critical interfaces unresolved. Mark uncertain measurements and supply the available equipment drawing.

Supply routes

Supply by specified model, China-made production or drawing.

For brand distribution, China-made components and drawing-based parts, origin, specifications and supply terms are confirmed by item.

Distributed Brands
PRODUCT FORMS

A clear view of the available forms.

A screw assembly joins the screw shaft, nut, end supports and drive connection. Accuracy and preload belong to the selected assembly, not just its nominal diameter.

Ball Screws product-form comparison
Product formConstructionSelection focusConnected components

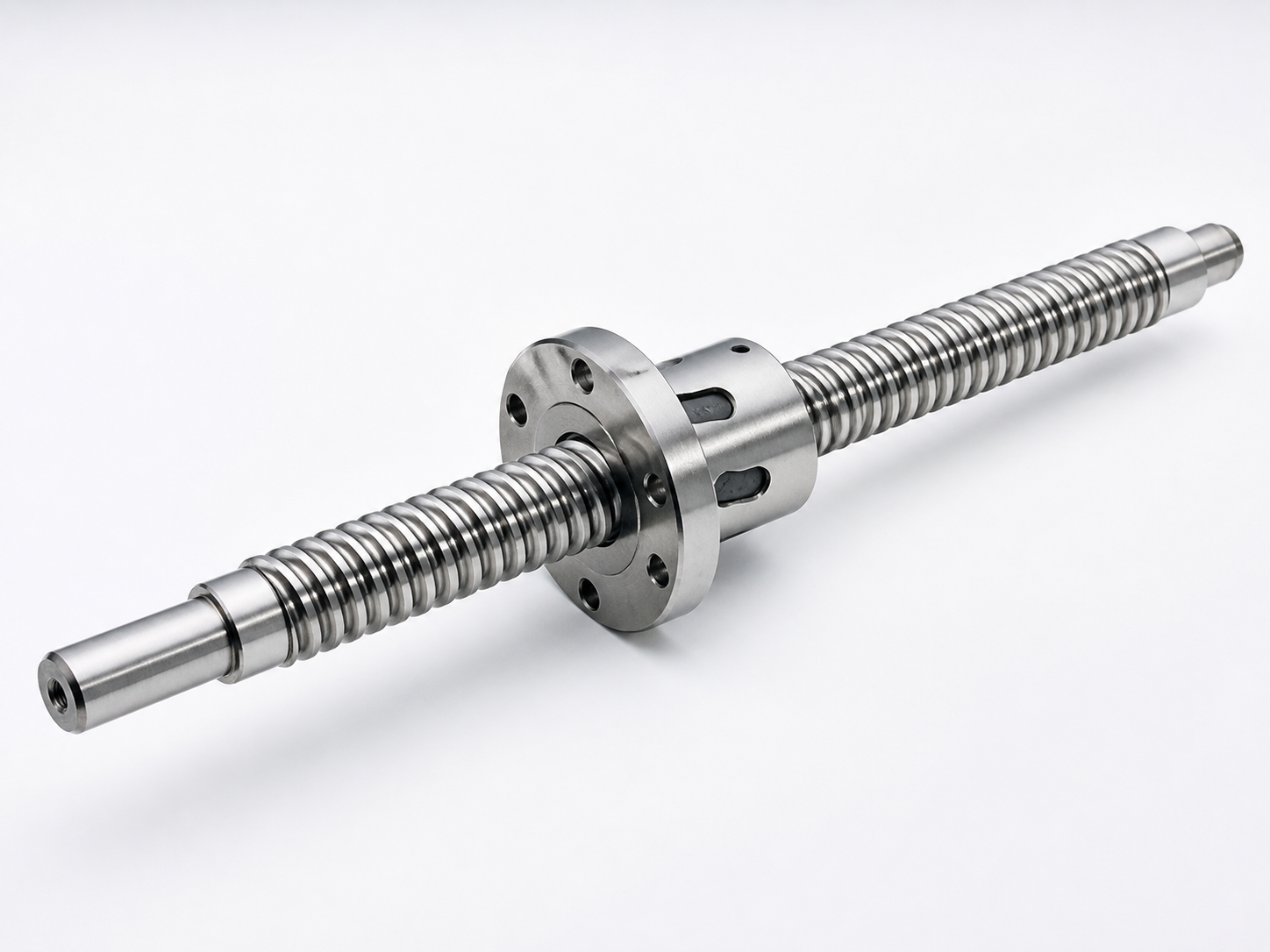

Rolled screwThread raceway formed by rollingSpecified lead accuracy and assembled running requirementsMatching nut and machined shaft ends
Ground screwThread raceway finished by grindingPositioning accuracy, lead specification and support layoutSuitable support bearings, locknuts and coupling
Flanged nutFlange provides the mounting interfaceFlange geometry, hole orientation and accessNut seat and the moving table
Compact nutNut shape selected around limited assembly spaceOutside envelope, return-system clearance and fixing methodCompact support and guided carriage arrangement
INTERFACE & SELECTION

The details that connect the assembly.

Travel and overall length

Effective travel, nut length and end machining each occupy part of the total shaft length and are kept distinct.

End support geometry

Bearing seats, threads, shoulders and drive journals are linked to support units and coupling engagement.

Operating condition

Stroke, speed, duty and mounting orientation affect the suitability of an assembly; preload is retained as a defined requirement.

INTEGRATED SUPPLY

Connected parts in one component list.

Guided travel

Rail and block placement are aligned with screw travel and nut-seat position.

Linear Guides

Motor connection

Both bore sizes, hub engagement and axial clearance are related to the motor and machined screw end.

Couplings

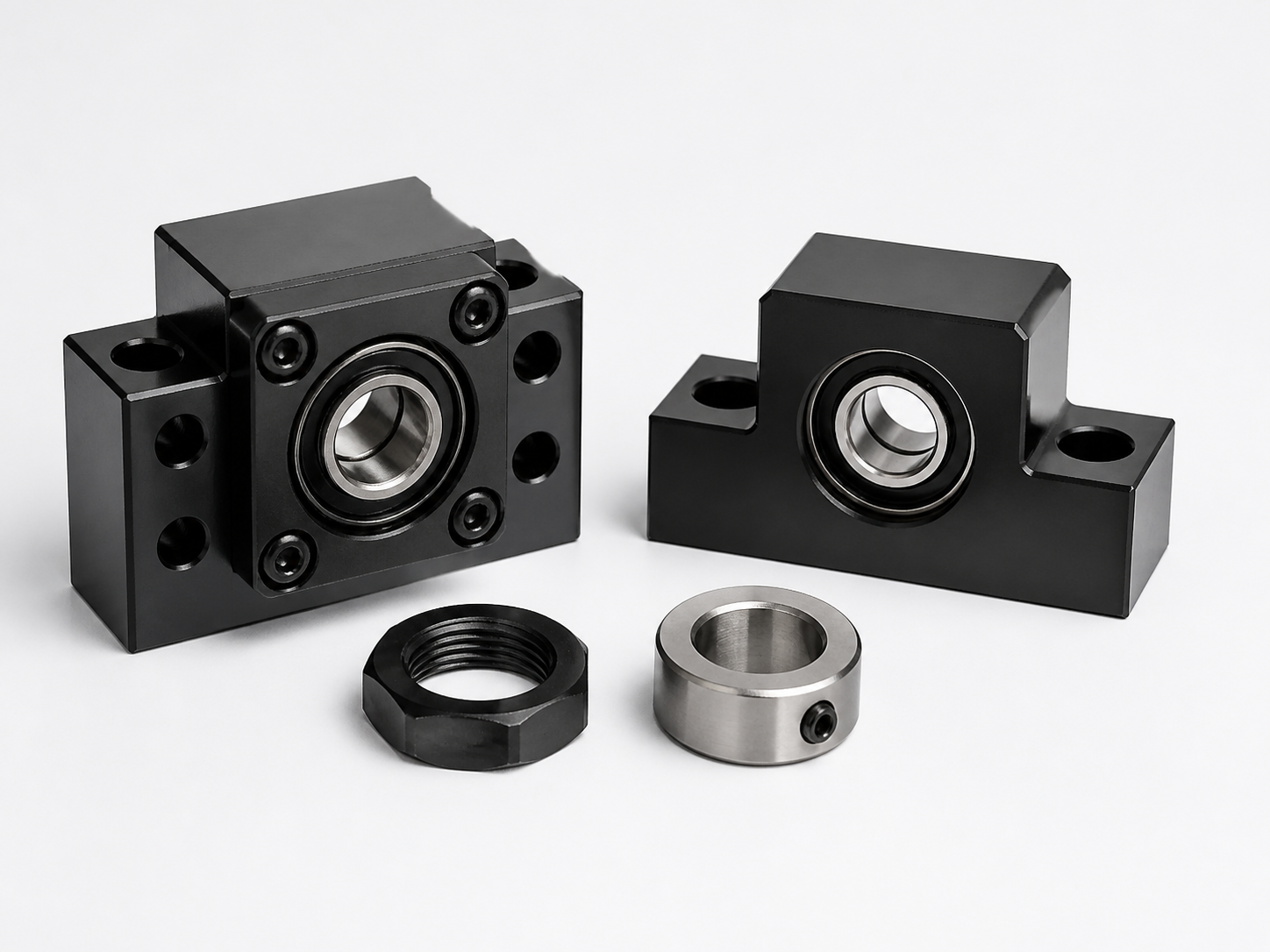

End supports

The bearing arrangement and retention parts support the specified fixed and supported end configuration.

Bearings
RFQ information

A complete model is enough to begin. Partial information is welcome too.

A model, photo, drawing or BOM can start the discussion; brand, quantity and critical interfaces can be clarified by item.
