Fixed and floating support
The complete shaft arrangement determines which support locates the shaft axially and how thermal movement is accommodated.
Integrated supplier of industrial transmission components
Bearings
Bring bearing types, reference numbers and operating requirements into one coordinated request.
Types within this family
Clarify the requirement within this product family.
These are specification options within the same family. Actual availability and suitability are confirmed against your request.

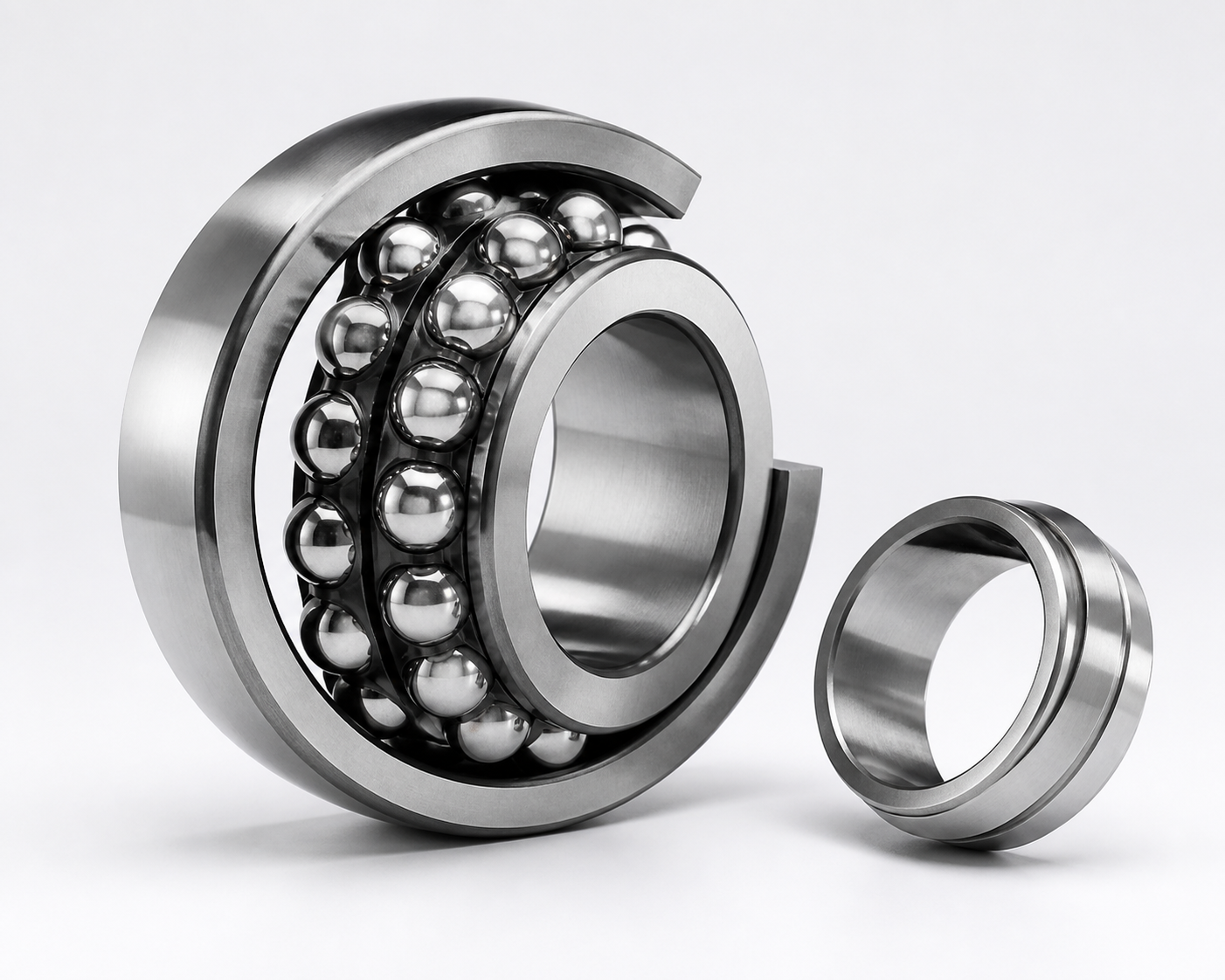

Deep Groove Ball BearingFull designation and suffix · Seal or shield requirementAngular Contact BearingComplete bearing reference · Single or matched-set requirementCylindrical Roller BearingFull type designation · Internal clearance designationTapered Roller BearingCone reference · Cup referenceNeedle Roller BearingsExact bearing designation · Inner ring requirementSelf-aligning BearingsBall or roller bearing family · Complete model and suffixInsert Bearings & Housing UnitsComplete unit or insert model · Housing mounting dimensions
Stainless Steel Bearing
- Specified material or model
- Seal material requirement
- Operating environment
- Document requirements
Stainless wording alone does not define suitability for a particular chemical or washdown condition. Provide the actual requirement.
Ceramic Bearing
- Full ceramic or hybrid requirement
- Specified material grades
- Size or exact reference
- Operating conditions
Do not treat ceramic as one interchangeable material specification. Mark which components and grades your design requires.

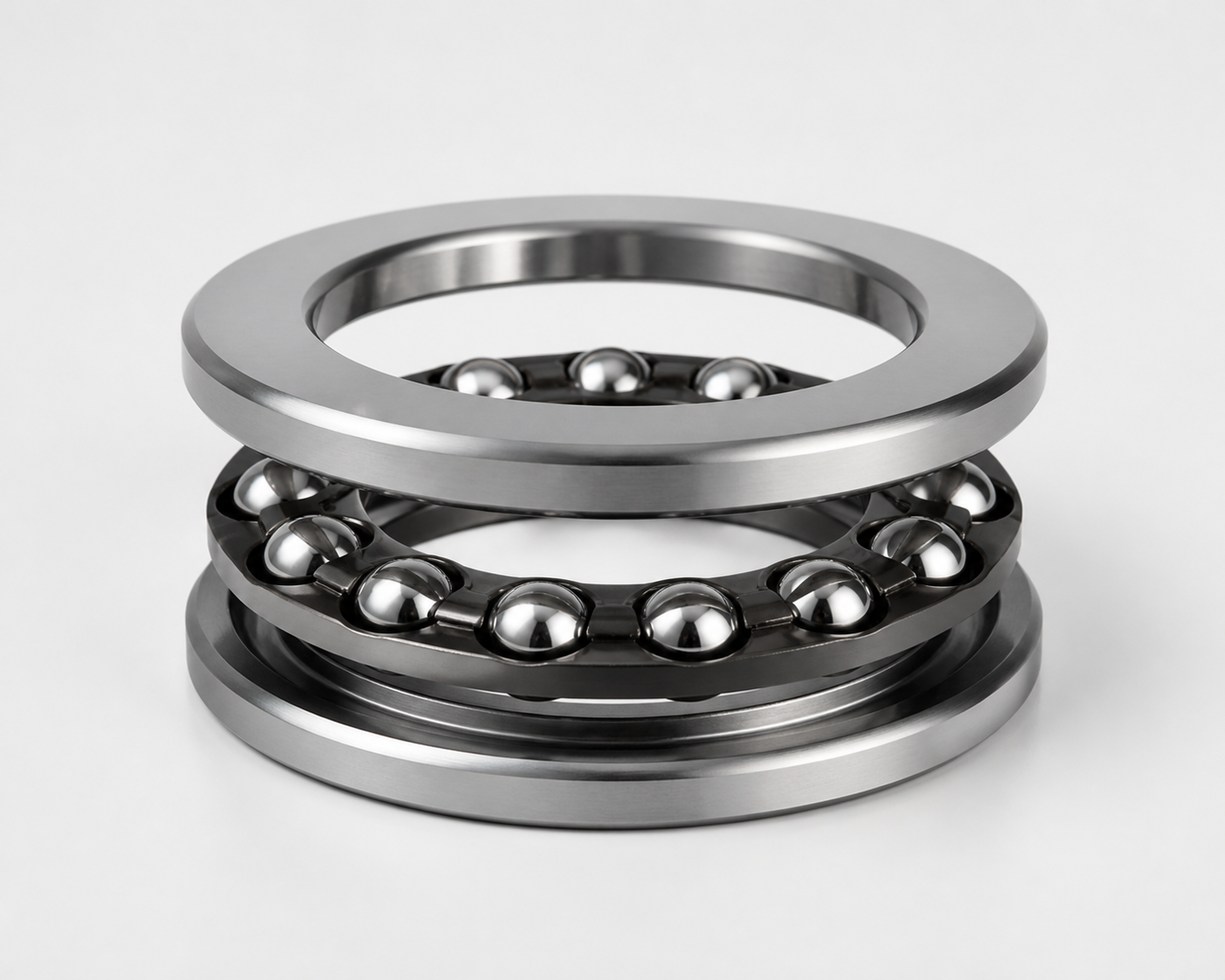

Thrust Bearings
- Full bearing model
- Required ring or washer references
- Arrangement drawing
- Quantity of complete sets
Distinguish complete bearings from individual washers or rings. Do not use a ring count as the complete-set quantity.
Cam Followers
- Full follower model
- Roller diameter and width
- Stud or bore dimensions
- Seal and lubrication reference
External roller dimensions alone may omit mounting and internal configuration. Keep the complete model or approved drawing.
ZOFANG Bearing Model Database
Tens of thousands of bearing references. Find models and basic dimensions.
Search available references by brand, model or bearing type. This database helps identify models and basic dimensions; brand, configuration, supply terms and lead time are confirmed through an RFQ.
| Brand | Model | Type | Dimensions d × D × B (mm) | Request this model |
|---|
Supply routes
Distributed BrandsSupply by specified model, China-made production or drawing.
For brand distribution, China-made components and drawing-based parts, origin, specifications and supply terms are confirmed by item.
PRODUCT FORMS
A clear view of the available forms.
Bearing supply connects the bearing designation with shaft support, retention and sealing. A matching envelope alone does not establish interchangeability.
| Product form | Construction | Selection focus | Connected components |
|---|---|---|---|
| Deep groove ball | Ball-and-raceway construction | Sealing, clearance and operating conditions | Shaft shoulders, housings and retaining parts |
| Angular contact ball | Directional contact angle; single or paired arrangements | Load direction, arrangement and preload specification | Matched spacers, locknuts and support seats |

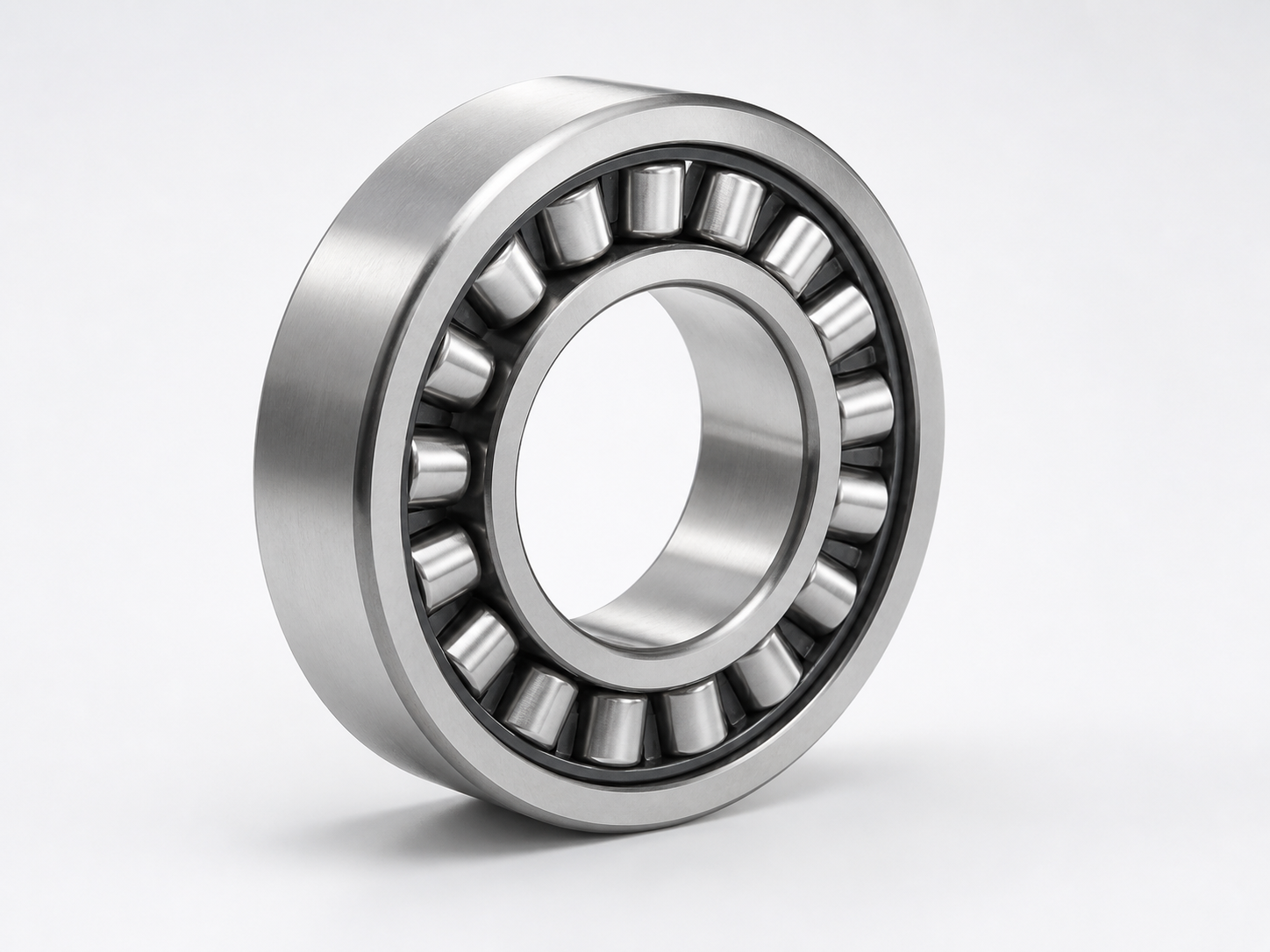

| Cylindrical roller | Cylindrical rolling elements with several rib arrangements | Ring design and axial locating or floating function | Shaft and housing fits with the required axial freedom |

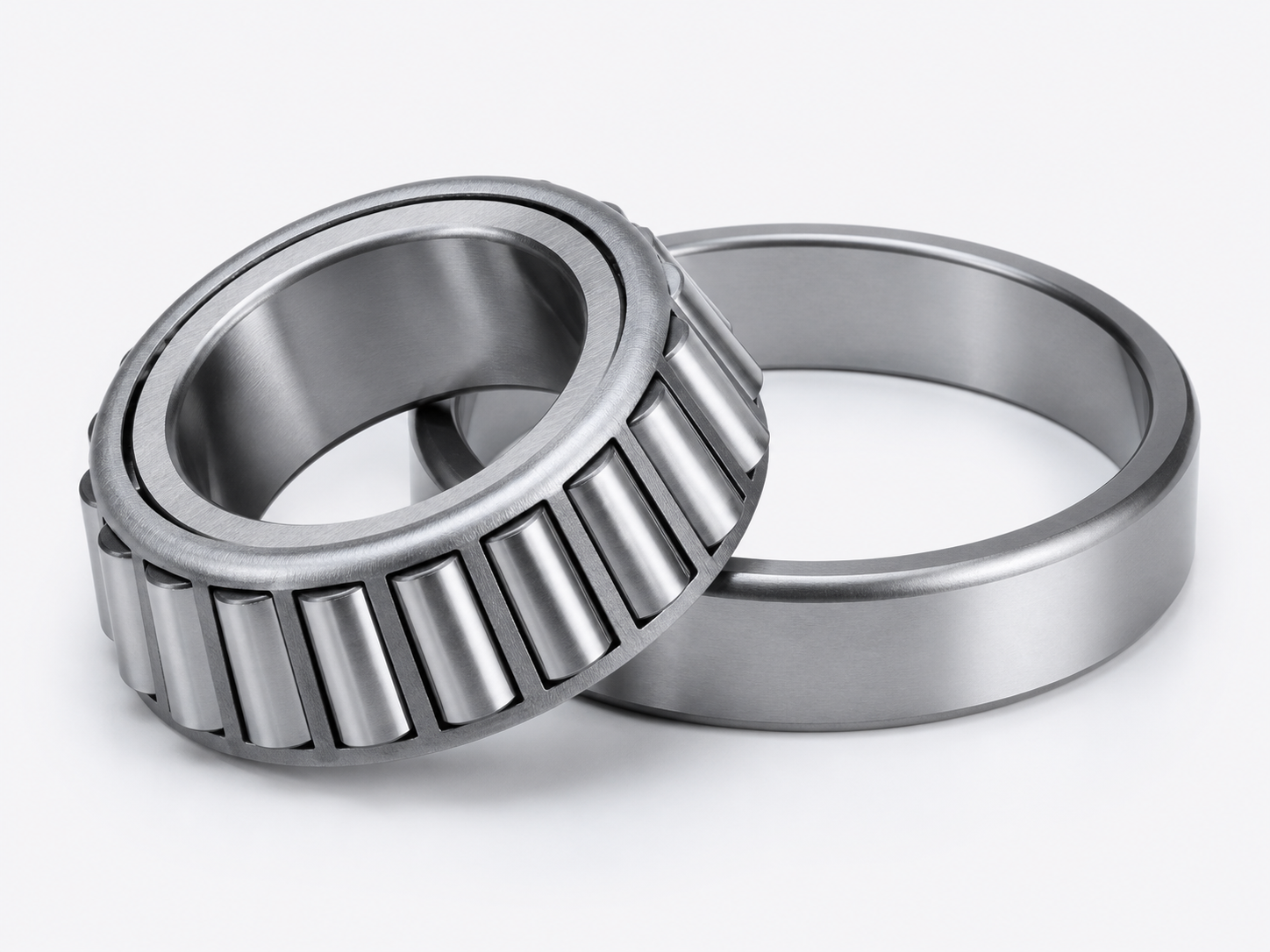

| Tapered roller | Tapered rolling elements and separable rings | Assembly orientation and clearance adjustment | Paired supports and axial adjustment components |
INTERFACE & SELECTION
The details that connect the assembly.
Suffixes and pairing
Seal, cage, clearance and accuracy suffixes remain part of the item identity. Matched sets retain their pairing requirements.
Mounting and operating environment
Interference fits, contamination, lubrication access and disassembly space affect the supporting parts and service arrangement.
INTEGRATED SUPPLY
Connected parts in one component list.
Shaft retention
Locknuts, collars and locating elements connect the bearing fit to the final assembly.
Precision Locating FastenersDriven shafts
Coupling bore and axial position are checked against the supported shaft and its available length.
CouplingsFeed-axis support
Screw-end machining, support bearings and locking components form one connected assembly.
Ball ScrewsRFQ information
A complete model is enough to begin. Partial information is welcome too.
A model, photo, drawing or BOM can start the discussion; brand, quantity and critical interfaces can be clarified by item.
Bearing supply
China-made bearings, specified brands and shaft components in one list.
From general rotary support to customer-specified international models, bearing requirements can sit alongside housings, locking parts and adjacent transmission components in one BOM. ZOFANG keeps brand designations, mating relationships and delivery terms connected across multiple supply sources.
Specified brands and full models
NSK, SKF, FAG, INA and other requests reviewed by model.
A brand name is only the starting point. The complete designation, suffixes, quantities and packaging or document requirements define the supply scope. Configuration, supply terms and lead time are confirmed item by item during quotation.
Searchable bearing model references
NSKSKFFAGINAand other customer-specified brands
China-made supply
Standard domestic bearings and related components organized around the actual model, specification and project requirement.
Brand distribution and sourcing
Customer-specified brands and full models checked individually, then coordinated with other parts for the same equipment.
Custom shaft components
Drawing-based sleeves, spacers and machined parts reviewed alongside bearings, locking components and mounting interfaces.
Clear terms for every line
Model references help identify basic specifications; supply terms, quotations and lead times are confirmed by RFQ.
Explore bearing model references- Identity
- Brand, full designation and suffix, quantity and matching arrangement
- Supply
- Item-level availability, quotation and delivery timing
- Handover
- Packaging, identification and agreed product documents
